Pressure Paint Pot Tank
What Is a Paint Pressure Tank?
A paint pressure tank, also known as a pressure feed tank or pressure pot, is a sealed container that supplies paint or coating material to a spray gun under steady air pressure. Every Ranox pressure paint tank operates with compressed air supplied by an air compressor, helping maintain continuous and consistent material delivery during spraying.
Ranox pressure tanks are available without an agitator, with a manual agitator or with a pneumatic agitator. The appropriate agitation type depends on how much mixing the material requires during operation. Tank material and outlet configuration should be selected separately according to the coating and production process.
-

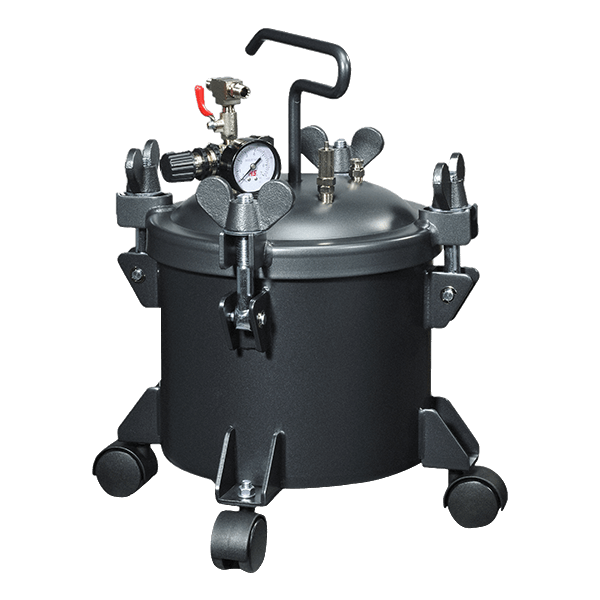

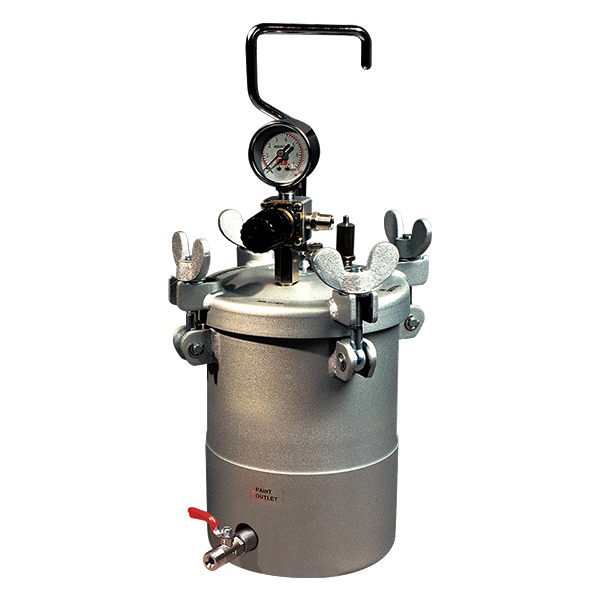

RANOX economy pressure pot does not contain agitator, ranging from small 2L to 120L. The materials are divided into iron and stainless steel, the type has wheel exiting paint outlet and flat bottom, and can also be customized according to the customer's special specifications, 10L or more pressure tanks all are supplied with aluminum inner barrels, and stainless steel white iron barrels are also available to provide customer choice.
-

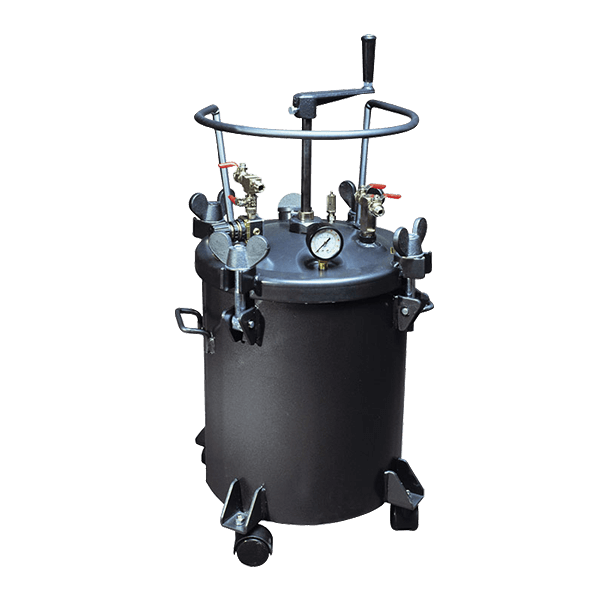

RANOX manual agitating pressure tank, from small capacity 2L to large capacity 120L, the pressure tank is made of carbon steel or stainless steel. the type has the wheel to release the paint export, flat bottom of the paint export, flat bottom of the paint export, but also according to the customer's Special specifications, 10L or more pressure tanks are attached to the aluminum inner barrel, and stainless steel white iron barrels are also available to provide customer choice.
-

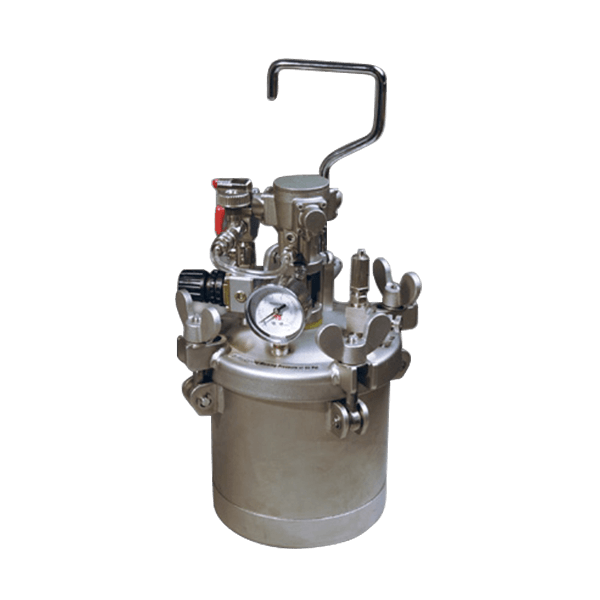

RANOX air pressure paint tank, from small capacity 2L to large capacity 120L, the pressure tank is made of carbon steel or stainless steel. the type has the wheel to release the paint export, flat bottom of the paint export, flat bottom of the paint export, but also according to the customer's Special specifications, 10L or more air pressure paint tanks are attached to the aluminum inner barrel, and stainless steel white iron barrels are also available to provide customer choice.
-
RANOX Pressure Tanks are made of stainless steel SUS304 or SUS316. And paired up with professional skill, the stainless steel pressure tanks are formed in one piece. Available capacities covering 2 liters to 120 liters. The carbon steel pressure tanks are also completed in one piece with capacities from 2 liters to 80 liters.
What Is a Paint Pressure Tank?
A paint pressure tank, also known as a pressure feed tank or pressure pot, is a sealed container that supplies paint or coating material to a spray gun under steady air pressure. Every Ranox pressure paint tank operates with compressed air supplied by an air compressor, helping maintain continuous and consistent material delivery during spraying.
Ranox pressure tanks are available without an agitator, with a manual agitator or with a pneumatic agitator. The appropriate agitation type depends on how much mixing the material requires during operation. Tank material and outlet configuration should be selected separately according to the coating and production process.
Choosing the Right Agitation Type
All three agitation configurations can handle a wide variety of coating materials. The main difference is how much mixing they provide during operation.
| Product Type | Agitation | Best Suited For |
| Economic Pressure Tank | None | Stable, premixed coatings and short production runs |
| Manual Pressure Tank | Manual stirrer | Materials that settle gradually and require occasional remixing |
| Air Agitating Pressure Tank | Pneumatic agitation | Materials that settle quickly and long, continuous production runs |
Ranox offers models from 2 to 120 liters, depending on the product and configuration. Available materials include carbon steel, SUS304 and SUS316 stainless steel.
Top-Outlet vs. Bottom-Outlet Pressure Tanks
In addition to agitation type, the outlet position affects how the material is discharged from the tank.
| Feed Design | Best Suited For |
| Top-Outlet, Standard | General spraying applications using standard coatings |

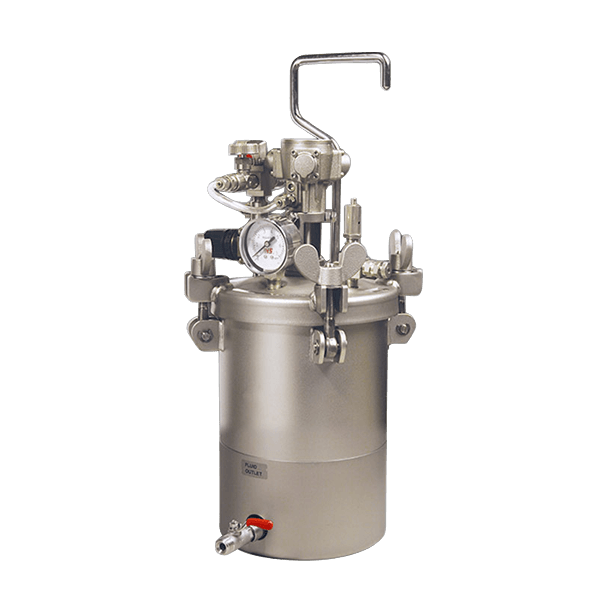

| Bottom-Outlet Pressure Tank | High-viscosity materials, more complete discharge and automated equipment |
A top-outlet tank is suitable for most general spraying applications. For high-viscosity materials or automated spraying systems, a bottom-outlet pressure tank is often recommended because it supports more reliable material discharge and easier connection to downstream equipment.
Why Use a Paint Pressure Tank for Spraying?
A paint pressure tank is useful when a spraying process requires greater material capacity, continuous delivery, stable output, material agitation or integration with automated equipment.
-
Consistent Material Supply
A pressure tank provides a continuous supply of paint or coating material to automatic spray guns and other application equipment. Stable material delivery helps reduce interruptions and output fluctuations during spraying.
-
Fewer Refill Interruptions
Compared with a small spray-gun cup, a pressure tank holds more material and reduces the need for frequent refilling. This helps minimize interruptions during longer spraying operations.
-
More Consistent Finish Quality
Stable material pressure helps the spray gun distribute the coating more evenly. This can reduce streaks, blotches and other finish inconsistencies related to unstable material delivery.
-
Improved Process Control
Operators can adjust the supply pressure according to the coating material, spray gun and application requirements. This helps maintain more consistent spraying conditions throughout the process.
-
Reduced Material Exposure
Because the material remains inside a sealed container, a pressure tank helps reduce exposure to ambient air, dust and other contaminants during operation.
Paint Pressure Tank Applications
Paint pressure tanks are used in industrial manufacturing, building decoration, woodworking, furniture production, tableware manufacturing and general product finishing.
Automotive and motorcycle manufacturing, shipbuilding and aircraft manufacturing and maintenance also use pressure tanks for stable material delivery and integration with automatic painting equipment.
Stainless steel models may also be suitable for cleanroom production processes that require corrosion resistance, easier cleaning and reduced exposure to environmental contaminants. Suitability depends on the material being handled, operating conditions, cleaning procedures and cleanliness requirements of the specific process.
Why Choose Ranox Paint Pressure Tanks?
Ranox manufactures paint pressure tanks in Taiwan with established production and quality-control processes. Flexible configuration options are available, allowing the capacity, tank material, agitation system and outlet design to be selected according to the material and spraying process.
The one-piece seamless tank body is designed for durability and easier interior cleaning. Ranox pressure tanks can be configured for manual spraying, continuous production and equipment-integrated coating processes.
Customization and OEM services are available for applications that require specific capacities, materials, outlet positions or equipment connections.
Looking for a standard pressure paint tank, a customized bottom-outlet model or a solution for automatic painting equipment? Contact Ranox today to discuss your material and spraying requirements.
FAQ
Q1. Does a paint pressure tank require an air compressor?
Yes. Ranox pressure tanks operate with compressed air. The working pressure is adjusted according to the material and spray-gun requirements.
Q2. Which agitation type should I choose?
Choose a non-agitating model for stable materials, a manual agitator for materials that require occasional remixing and a pneumatic agitator for materials that settle quickly or require continuous mixing.
Q3. When should I choose a bottom-outlet tank?
A bottom-outlet tank is generally recommended for high-viscosity materials, more complete discharge or connection with automated spraying equipment.
Q4. What tank capacity do I need?
Smaller tanks suit sampling, touch-up work and short runs. Larger models reduce refill frequency during continuous production. The appropriate size depends on material consumption and spraying duration.
Q5. Can the tank be connected to automatic spraying equipment?
Yes. Ranox pressure tanks can be integrated with automatic spraying lines and other coating systems. The required configuration depends on the material and equipment layout.
Q6. Which tank material should I choose?
Carbon steel is suitable for many general applications. SUS304 or SUS316 stainless steel may be selected when greater corrosion resistance, easier cleaning or higher cleanliness is required.
Q7. Can Ranox customize a pressure tank?
Yes. Ranox can customize the capacity, tank material, outlet position, agitation system and other specifications. OEM services are also available.
