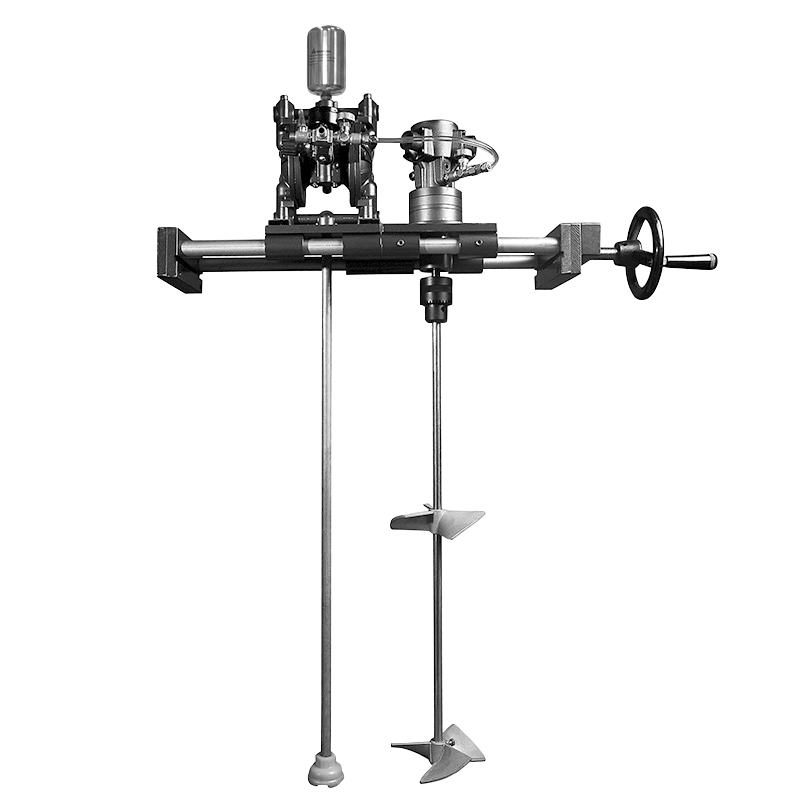

AIR DIAPHRAGM PUMP
Product Introduction
Specification
| Air Motor | AM-02R |
|---|---|
| Pressure Ratio | 1:1 |
| Transmitting Capacity | 5L/Min (0.4kg/cm²) |
| 7.5L/Min (1kg/cm²) | |
| 10.5L/min (2kg/cm²) | |
| Used Air Pressure | 1~5kg/cm² |
| Max. Painting Pressure | 5kg/cm² |
| Max. Pump Speed | 160times/Min (5kg/cm²) |
| Horsepower | 1/3 |
| Air Cons. | 16 S.C.F.M. |
| Vibration | 7m/S2 |
| R.P.M. | 630 rpm |
| 320 rpm | |
| Gear Ratio | 5:1 |
| 10:1 | |
| Noise | 93db |
| Product(Mm) | 900×270×1270 |
