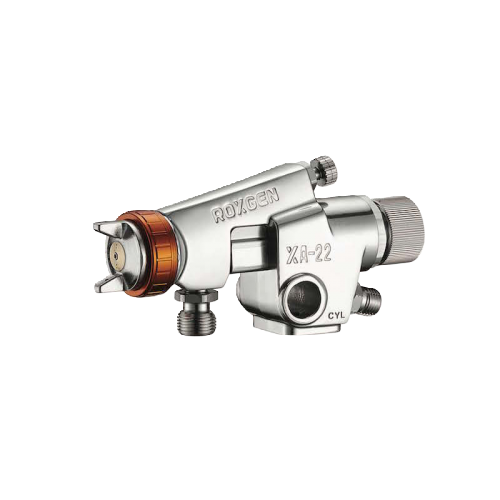

Round Pattern Automatic Spray Gun
Product Description
RANOX round pattern automatic spray guns & Automatic Ceramic Spray Gun can be mounted on robotic arms or automatic painting machines. Suitable for applying adhesive glue, spot marking spray, lubricating oil, release agent… and so on.Nozzle and needle are made of high-quality stainless steel with heat-treatment. The ideal spraying for ceramic paint.
Ranox has more than 30 years of experience in the production of spray guns. The production process standards are strict. Ranox spray guns have been well received by customers in many countries. If you are search Automatic Ceramic Spray Guns, Round Pattern Spray Gun please contact us.
FEATURES
XA-11H SPRAY DISTANCE: 200mm
XA-22H SPRAY DISTANCE: 250mm
PAINT VISCOSITY: 16sec/Ford#4
XA-11H FLUID CONNECTOR: 1/4PF
XA-22H FLUID CONNECTOR: 3/8PF
AIR CONNECTOR: 1/4PF
Product Introduction
ModelNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
XA-11-08H 0.8(0.031) E2P 0.29(3.0/43) 150 270(9.5) 190(7.5) 290(0.64)
XA-11-10H 1.0(0.039) E2P 0.29(3.0/43) 200 270(9.5) 220(8.7) 290(0.64)
XA-11-13H 1.3(0.051) E2P/H2/H4 0.29(3.0/43) 250 260(9.2) 120(9.1) 290(0.64)
XA-11-15H 1.5(0.059) E2P/H2/H4 0.29(3.0/43) 270 285(10.0) 270(10.6) 290(0.64)
XA-22-12H 1.2(0.047) G2P 0.29(3.0/43) 500 530(18.7) 400(15.7) 290(0.64)
XA-22-15H 1.5(0.059) K2 0.29(3.0/43) 270 330(11.7) 340(13.4) 290(0.64)
XA-22-20H 2.5(0.098) R2 0.29(3.0/43) 400 360(12.7) 320(12.6) 2900(12.6)
