Low Pressure Spray Paint Gun

Low Pressure Spray Paint Gun
Product Description

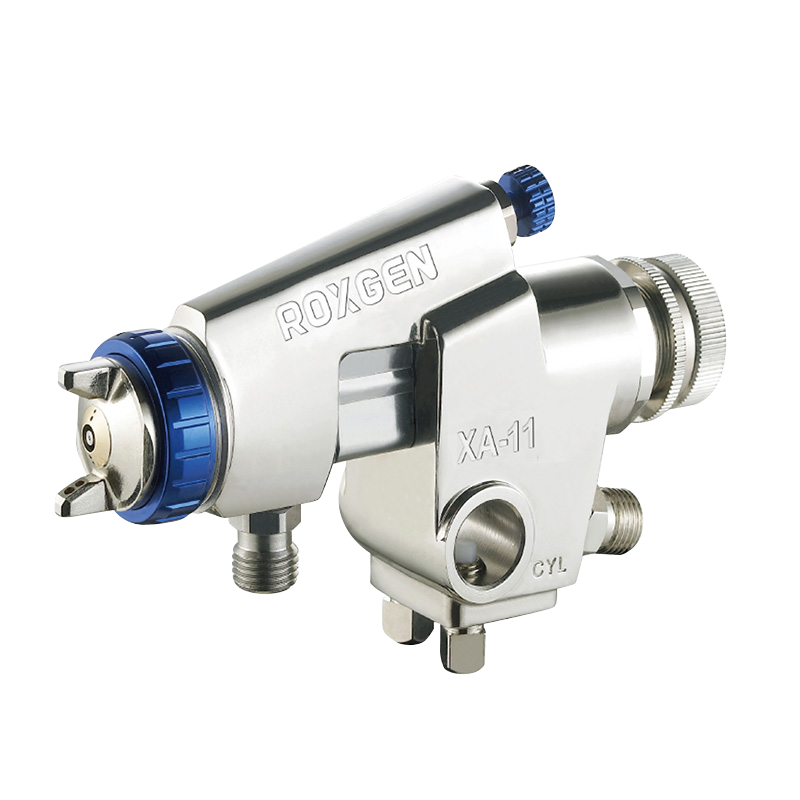

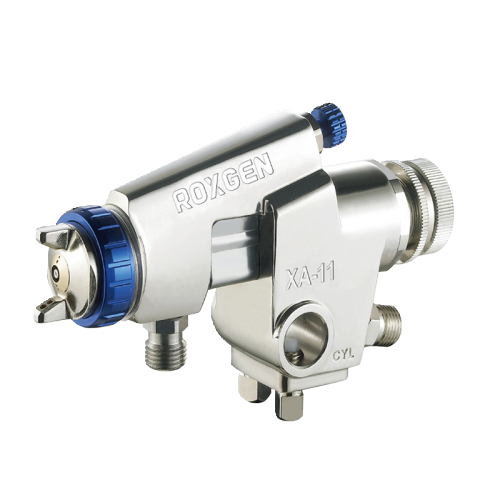

RANOX low pressure automatic spray guns can be mounted on robot or automatic painting equipment. Suitable for a large area finish.
The atomizing air and spray air control are set outside of robot, there is no need to interrupt the operation, and the operation is simple. Suitable for computer shell , mobile phone shell, cosmetic container, furniture, hand tools, textile, glass, die-casting, building materials, hardware industry.

Ranox has more than 30 years of experience in the production of spray guns. The production process standards are strict. Ranox spray guns have been well received by customers in many countries. All products are produced in Taiwan. We don’t have any other plant outside of Taiwan.
Whether you are a wholesaler, an OEM buyer, you are welcome to contact us as long as you have a need for a spray gun!

FEATURES
SPRAY DISTANCE: 200mm
PAINT VISCOSITY: 16sec/Ford#4
FLUID CONNECTOR:
XA-11L-10P: 1/4”PF
XA-22L-12P: 3/8”PF
CAP/CYL AIR CONNECTOR: 1/4PF
Inquiry
Inquiry
Product Introduction
ModelType of FeedNozzle Orifice Ø Mm (In)Air CapAtomizing Air Pressure Mpa(Bar)Fluid Output Ml/MinAir Consumption L/Min (Cfm)Pattern Width Mm(In)Weight G(Lbs)
XA-11L-08P PRESSURE 0.8(0.031) LV4 0.29(3.0/43) 330 430(15.2) 200(7.9) 410(0.90)
XA-22L-10P PRESSURE 1.0(0.039) LV4 0.29(3.0/43) 330 410(14.5) 200(7.9) 410(0.90)
XA-11L-12P PRESSURE 1.2(0.047) LV4 0.29(3.0/43) 150 410(14.5) 200(7.9) 410(0.90)
XA-22L-08P PRESSURE 0.8(0.031) X2 0.34(3.5/50) 400 530(18.7) 400(15.7) 440(0.97)
XA-22L-10P PRESSURE 1.2(0.039) X2 0.24(2.5/36) 400 500(17.7) 300(11.8) 440(0.97)
XA-22L-12P PRESSURE 1.2(0.047) X2 0.20(2.0/29) 500 500(17.7) 300(11.8) 440(0.97)

Low air pressure, high flow, the pressure in the air cap below 0.7kg/cm² (10psi).
Fine Aerosol Particles, even atomization with high adhesion.
Stable painting quality.
