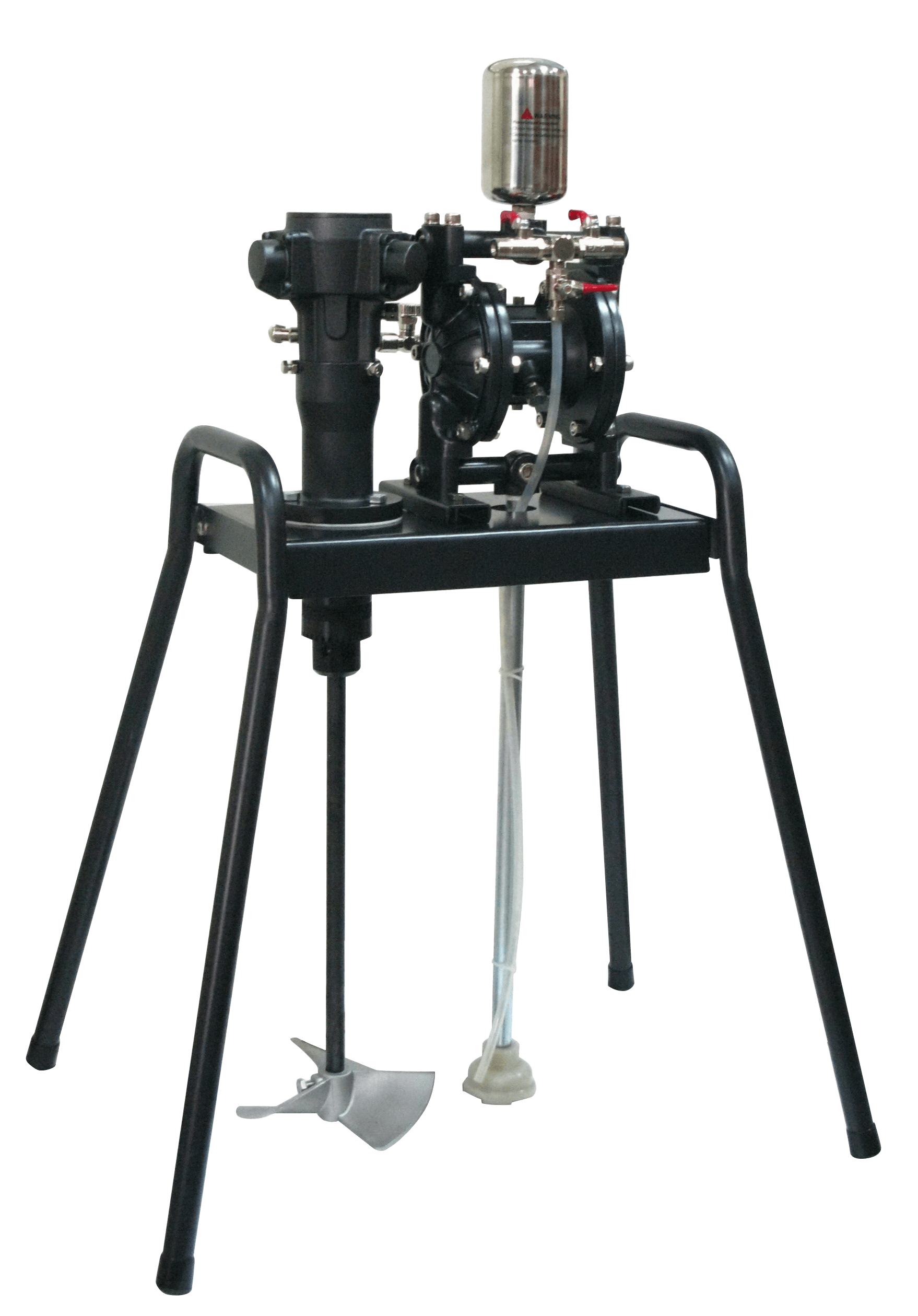

Air Diaphragm Pump
Product Description
Air Mixer comes in a variety of sizes and is suitable for many applications.
Product Introduction

specification

Air Motor 1/3hp(AM-02)
Fluid Inlet & Outlet Dimension 3/8”PT
Air Inlet & Outlet Dimension 1/4”PT
Pressure Ratio 1:1
Transmitting Capacity 5L/min    0.4kg/cm²
7.5L/min   1.0kg/ cm²
10.5L/min  2.0kg/ cm²
Used Air Pressure 1-5kg/ cm²
Max. Painting Pressure 5kg/ cm²
Max. Pump Speed 160 times/ min(5kg/ cm²)
Min. Pump Speed 80 times/ min (0.4kg/ cm²)
Max. Fluid Temprature 45°c
Body Material Of Construction Aluminum
Product(mm) 550×455×860
