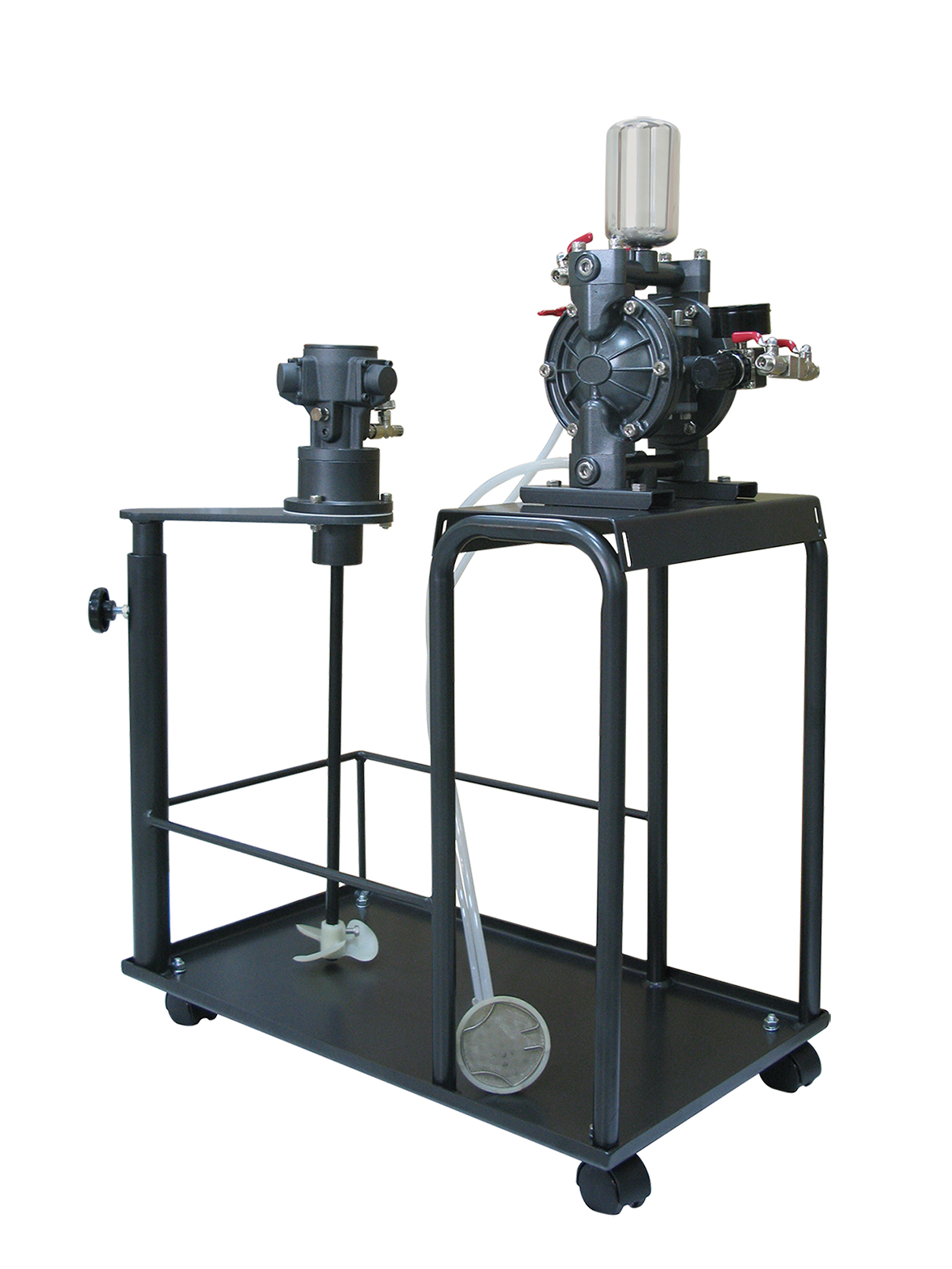

AIR DIAPHRAGM PUMP
Product Introduction
Specification
| Air Motor | 1/3HP(AM-02) |
|---|---|
| Pressure Ratio | 1:1 |
| Transmitting Capacity | 5L/Min (0.4kg/cm²) |
| 7.5L/Min (1kg/cm²) | |
| 10.5L/min (2kg/cm²) | |
| Used Air Pressure | 1~5kg/cm² |
| Max. Painting Pressure | 5kg/cm² |
| Max. Pump Speed | 160times/Min (5kg/cm²) |
| Min. Pump Speed | 80times/Min (0.4kg/cm²) |
| Horsepower | 1/3 |
| Air Cons. | 19 S.C.F.M. |
| Vibration | 11m/S2 |
| R.P.M. | 2780 rpm |
| Gear Ratio | 1:1 |
| Noise | 99db |
| Product(Mm) | 750×390×1000 |
